Working with Custom Fields in Windsor.ai

custom fields in windsor.ai

Here’s your ultimate guide to creating custom fields in Windsor.ai.

With this feature, you can effortlessly build new metrics and dimensions, such as CPA, ROAS, or any other key performance indicators, by combining and transforming existing fields from your connected data sources.

If you’re familiar with spreadsheets or BI tools like Looker Studio, you’ll find this process intuitive and quick to implement.

What are custom fields?

Custom fields let you create your own metrics and dimensions using standardized formulas. You can think of it like creating a calculated field in Google Sheets, Looker Studio, or Power BI. For example, if you take “cost” and “conversions” fields from your ad platform, you can easily create a new metric called “CPA” by dividing cost by conversions.

How to create a custom field in Windsor.ai

1. Navigate to the custom fields section: Go to onboard.windsor.ai and head to the data preview.

2. Choose the connector: Select the data source you’re working with. For example, if you’re pulling data from Facebook Organic, pick “Facebook”.

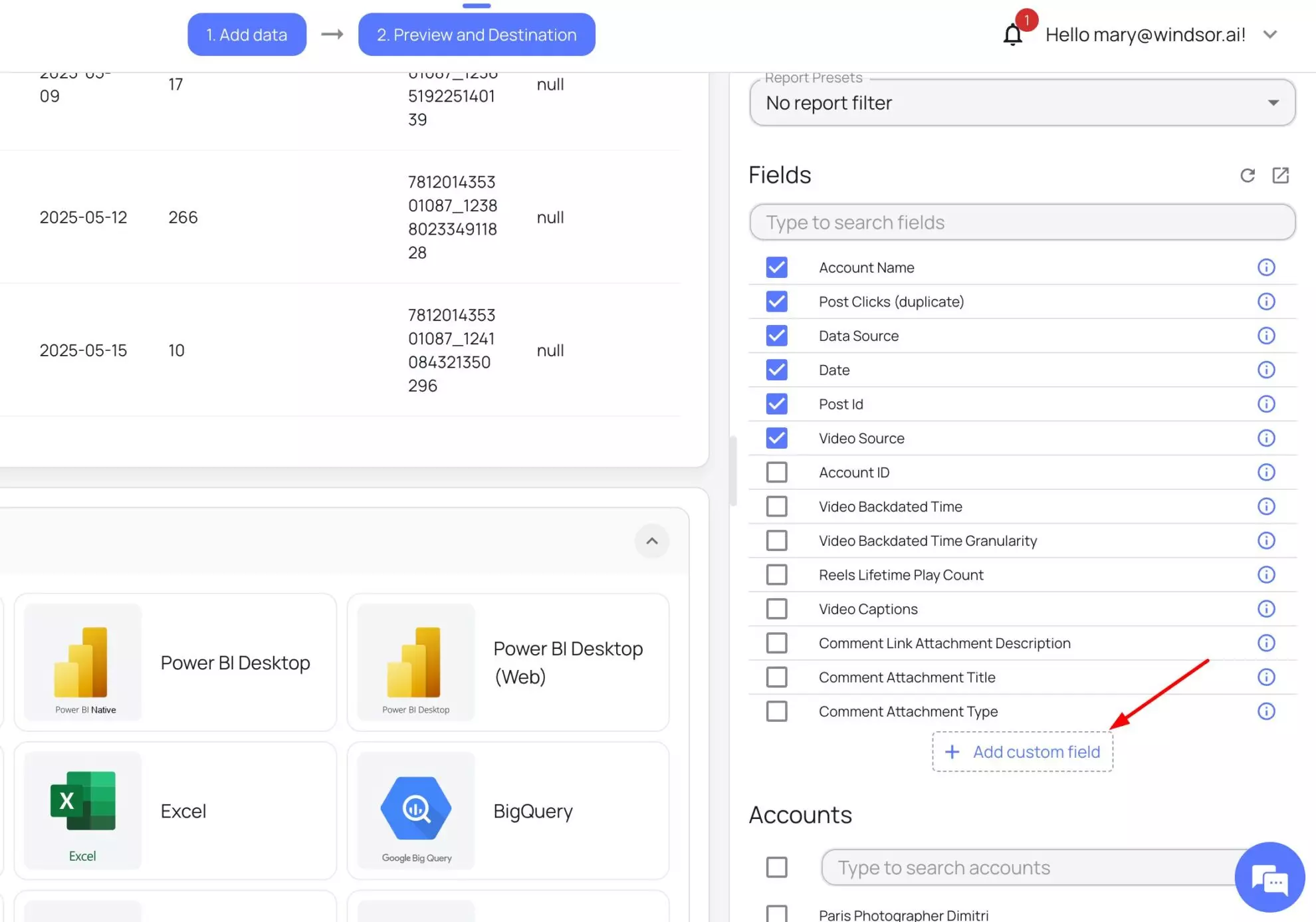

3. Click on the plus button below the available fields:

custom fields in windsor

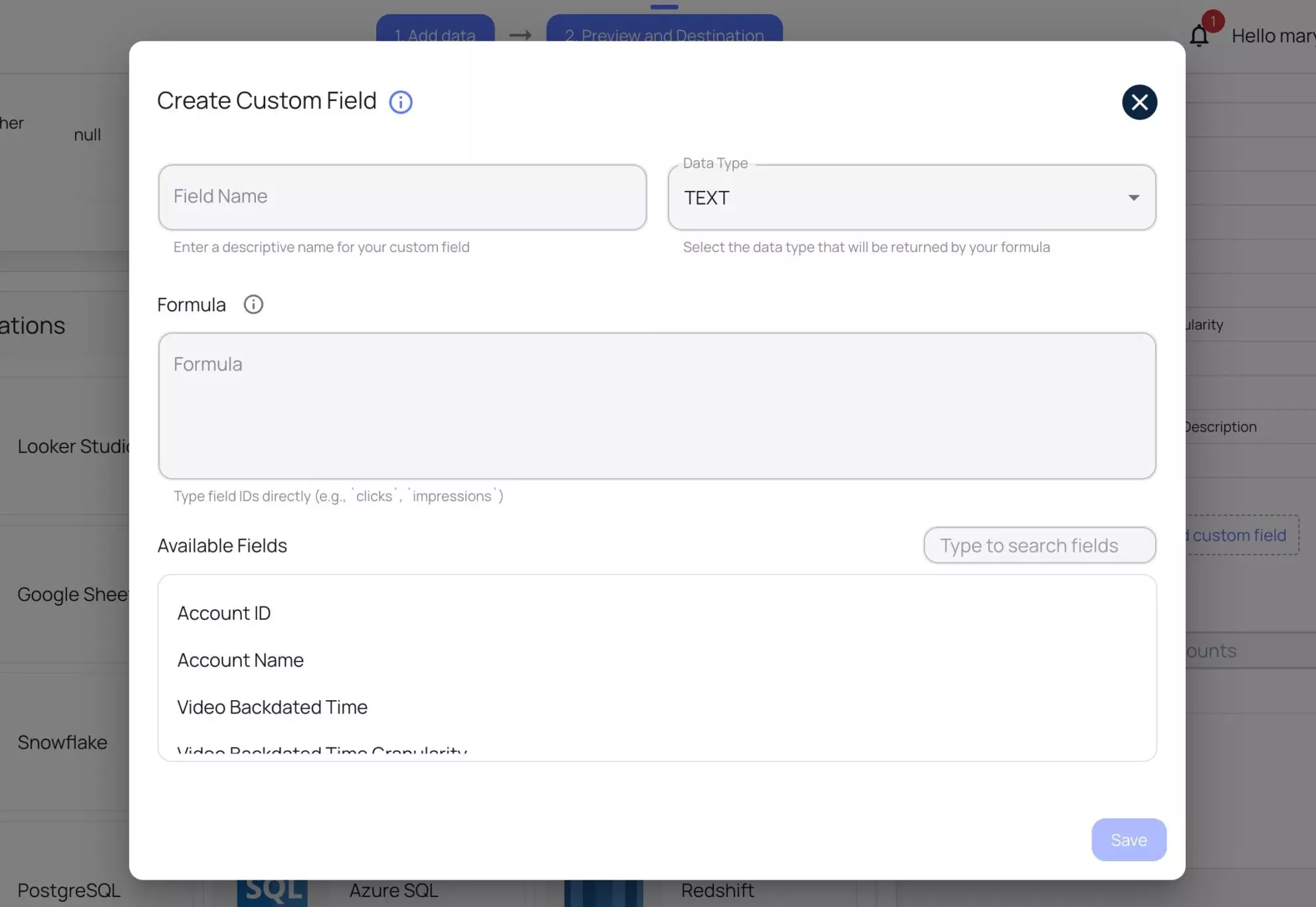

4. Enter a name for your new metric or dimension and create a formula:

custom fields windsor

In the formula box, use the fields and functions to define your new metric.

Sample:

sum(float(spend))/sum(float(unique_clicks))
      • Refer to fields directly by their name. If you are unsure about the field ID, you can find it by clicking ▼ next to the connector URL in the data preview.
        Alternatively, you can also click on the ⓘ button next to the fields in the field search.
      • Use operators like +, -, *, / for arithmetic.
      • Apply built-in functions such as sum(), to_float(), or replace() If needed.Basic syntax:

Examples:

1) CPA formula: To calculate CPA (Cost per Acquisition), you should use the relevant cost and conversions metrics. With Windsor.ai available fields, your formula can be:

float(spend) / float(actions_purchase)

Make sure to check the field names from the data fields reference page. They might be named slightly differently depending on the connector (e.g., “spend” or “ad_cost” instead of “cost”).

2) ROAS formula: ROAS (Return on Ad Spend) is typically calculated as the revenue divided by the cost. Using Windsor.ai’s available fields, the formula can be the following:

float(action_values_purchase) / float(spend)

5. Save your custom field: Once you’re happy with the formula, click on Save. The custom field will now be available in the sidebar with all fields alongside other metrics and dimensions. If you want to modify your formula, you can click on the pencil button next to it. To delete, use the trash button.

Video walkthrough


Example 1:

The formula for the campaign grouping field is:

if(
'Japan' in campaign or 'APAC' in campaign, 'APAC',
if('UK' in campaign or 'FR' in campaign, 'EUROPE', 'other')
)

Example 2:

The formula for the clicks2 field is:

float(link_clicks)

Facebook Ads

The formula for the clicks2 field is:

float(clicks)

Google Ads

Common formula examples

Below are a few of the most common marketing metrics you might want to create as custom fields:

  1. CPA (Cost per Acquisition):

    Formula:

    float(totalcost) / float(conversions)

    This divides your total cost by the number of conversions, telling you how much each acquisition costs on average.

  2. ROAS (Return on Ad Spend):

    Formula:

    float(transactionrevenue) / float(totalcost)

    This shows how much revenue you earn for each unit of currency you spend on ads.

  3. CTR (Click-Through Rate):

    Formula:

    (float(clicks) / float(impressions)) * 100

    This converts your click-to-impression ratio into a percentage.

  4. CPC (Cost per Click):

    Formula:

    float(totalcost) / float(clicks)

    This lets you see how much each click costs on average.

Expert tips and tricks for creating custom fields in Windsor.ai

  • Check field names: Always verify the exact field names from the data fields reference pages. Small differences in field names can cause the formula to fail.Link: Data Fields Reference Pages
  • Validate with a simple test: Start by creating a simple formula and make sure it produces a reasonable value. For example, check your CPA calculation for a given day against your known metrics.
  • Blending data from different sources:
    If, for example, you want to calculate ROI from Facebook Ads spend and Shopify revenues, you can use the all connector and apply this formula, based on the relevant fields for each channel:

    float(spend)/float(order_net_sales)

Functions

  • lookup()

    lookup(value, json_map, default, operator)

    Parameters

    • value – Field or literal to evaluate.
    • json_map – JSON array of [match, return] pairs, evaluated top-down.
      Example: '[[\"facebook\", \"Paid Social\"], [\"email\", \"Lifecycle\"]]'
    • default – Returned when nothing matches (optional; defaults to null).
    • operator – Comparison method:
      • eq – Equals (case-sensitive for text)
      • contains – Substring match
      • gt/gte – Numeric greater-than / ≥
      • lt/lte – Numeric less-than / ≤

    Returns

    • The mapped value from json_map when a pair matches.
    • default if no match is found.
    • null if json_map is malformed or operator unsupported.

    Examples

    # Exact text match
    lookup(channel,
           '[ ["facebook", "Paid Social"], ["email", "Lifecycle"] ]',
           "Other",
           "eq")

    # Substring match
    lookup(campaign,
           '[ ["promo", "Promo"], ["brand", "Brand"] ]',
           "Other",
           "contains")

    # Numeric tiering
    lookup(spend,
           '[ [5000, "High"], [1000, "Medium"], [0, "Low"] ]',
           "Low",
           "gt")


Converts a date (as text) into a Unix timestamp — the number of seconds since 1 January 1970.

  • regexp_extract()

Extracts part of a text value using a regular-expression pattern.

Syntax:

regexp_extract(text, pattern)

Parameters:

  • text: The field or text you want to search.
  • pattern: The regular-expression pattern. Wrap the part you need in ( ).

Returns:

  • The first piece of text that matches what’s inside the ( ).
  • If nothing matches or the pattern is unsafe/invalid, the original value is returned unchanged.

Examples:

regexp_extract('Product-1234-US', 'Product-(\\d{4})') → '1234'
regexp_extract('[email protected]', '@(.*)$') → 'example.com'

Tips:

  • Keep patterns simple—avoid overly nested wildcards like (.*)*.
  • Only the text inside the first pair of ( ) is returned.
  • coalesce()

Returns the first value that is not empty; otherwise, uses a fallback.

Syntax:

coalesce(value, fallback)

Parameters:

  • value: The main value.
  • fallback (optional): Value to use when the first one is empty. Default is 0.

Example:

coalesce('', 'N/A') → 'N/A'
  • to_float()

Converts text or whole numbers to a decimal number.

Syntax:

to_float(value)

Returns:

  • A decimal number, or the original value if it can’t be converted.

Example:

to_float('12.34') → 12.34
  • float()

Alias of to_float.

  • to_int()

Converts text or decimals to a whole number.

to_int(value)
  • Returns 0 when the input is empty.
to_int('42') → 42
  • replace()

Find-and-replace text inside a string.

replace(text, find, replace_with)
replace('US$ 20', 'US$ ', '') → '20'

  • to_datetime()

Turns many date formats into YYYY-MM-DD.

to_datetime(date_string, format)
to_datetime('31/12/2025', '%d/%m/%Y') → '2025-12-31'
  • to_timestamp()

Converts a date (as text) into a Unix timestamp — the number of seconds since 1 January 1970.

Syntax:

to_timestamp(date_string, format)

Parameters:

  • date_string: The date you want to convert (e.g., '2025-04-18').
  • format (optional): The format your date is in. The default is '%Y-%m-%d' (year-month-day).

Returns:

  • A number representing the date in timestamp format.
  • If the input is empty or invalid, the original value is returned.

Examples:

to_timestamp('2025-04-18') → 1744934400
to_timestamp('04/18/2025', '%m/%d/%Y') → 1744934400
  • fromtimestamp()

Converts a Unix timestamp to YYYY-MM-DD.

fromtimestamp(1744934400) → '2025-04-18'

  • split_string()

Splits text and returns one part.

split_string(text, separator, index)
split_string(A/B/C', '/', 1) → 'B'
  • list_join()

Combines many values into one text list, separated by commas.

list_join('red', 'green', 'blue') → "red,green,blue"

  • sum()

Adds all provided numbers. Empty values are ignored.

sum(1, 2, '', 3) → 6
  • max()

Returns the largest value, ignoring empty ones.

max(10, '', 7) → 10
  • avg()

Calculates the average of the values (empty items are skipped).

avg(4, 6, 8) → 6
  • length()

Counts how many inputs are provided (excluding empty values).

length('a', '', 'b') → 2
  • nullif()

Returns empty when two values are the same; otherwise, returns the first value.

nullif('paid', 'paid') → (empty)

  • not()

Reverses a true/false value.

not(true) → false

Conclusion

Creating custom metrics and dimensions with Windsor.ai is straightforward and flexible. By combining existing fields and using familiar spreadsheet-like formulas, you can tailor your analytics to your exact needs.

Give it a try with CPA, ROAS, or any other custom metric you’ve been wanting to track!
